| Brand Name: | DUXPCB |
| Model Number: | Goldfinger PCB |
| MOQ: | 1 pcs |
| Price: | 3–5 days for prototype, 7–10 days for mass production |
| Delivery Time: | 3–5 days for prototype, 7–10 days for mass production |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

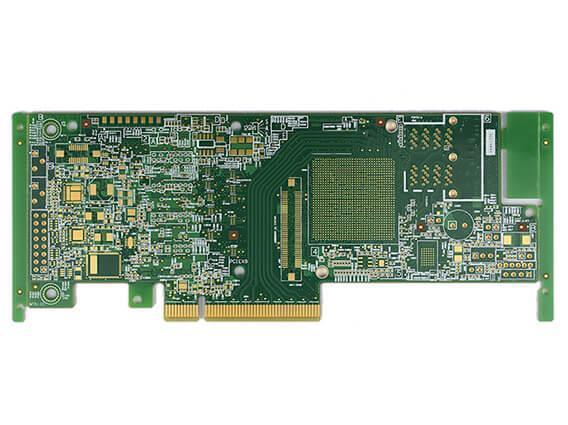

DuxPCB provides world-class precision manufacturing for Goldfinger PCBs, the backbone of high-performance expansion cards and modular electronics. Our Advanced PCBA solutions integrate High-Density Interconnect (HDI) technology with robust edge-connector designs. Engineered for IPC Class 3 reliability, our boards feature a high-layer count stackup and controlled impedance to ensure flawless data transmission. Whether your design includes Fine pitch BGA or complex signal routing, our manufacturing process is optimized for the most demanding technical environments.
| Feature | Capability |
|---|---|
| Materials | FR4, Rogers, Shengyi, Tuc, etc. |
| Max Layers | 1-40L |
| Min. Hole Size | 8mil/0.2mm |
| PCB thickness/hole size ratio | Maximum: 12:1 |
| Gold Thickness | Hard Gold: 2 to 50µ"; ENIG: 1 to 5µ" |
| Board Thickness | 0.2-8mm |
| Min. Trace Width | 0.08mm |
| Min. Trace Space | 0.08mm |
| Minimum space finger to beveling | 0.15mm (to avoid damaging fingers) |
| Surface Finishing for Goldfinger | Hard Gold (Electrolytic Gold), Immersion gold(ENIG), ENEPIG, ENIG+OSP, HASL+plating hard Gold, ENIG+plating hard Gold, OSP+plating hard Gold, etc. |
| Solder Mask | Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green |
| Silkscreen | White, Black, Red, Purple, etc. |
| Via Process | Tenting Vias, Plugged Vias, Vias not covered |
| Test | Fly Probe Testing (Free) and A.O.I. testing |
| Build time | 5-10 days |
| Lead time | 2-3 days |
| Certifications | ISO 9001:2015, UL, ROHS, REACH |
| Quality Standards | IPC A-600, IPC-6010 |
1. Overcoming Complex Yield Barriers: Many fabricators struggle with yield loss on high-layer count stackup designs. DuxPCB utilizes advanced registration systems and vacuum lamination to ensure your complex multi-layer Goldfinger boards are delivered right the first time, every time.
2. Eliminating Field Failures: In Aerospace and Medical sectors, a single contact failure is catastrophic. We apply IPC Class 3 reliability protocols and rigorous AOI testing to ensure your Advanced PCBA solutions function flawlessly in life-critical environments.
3. Proactive Technical Consulting: Don't pay for preventable redesigns. Our engineers provide expert DFM consulting for Fine pitch BGA and controlled impedance layouts, identifying potential manufacturing bottlenecks before they impact your budget.
4. Scaling Without Delays: Moving from a difficult prototype to volume production often causes supply chain friction. DuxPCB bridges this gap with precision manufacturing workflows that scale seamlessly, maintaining 5-10 day build times regardless of complexity.
What is the standard beveling angle for Goldfinger PCBs?
We typically provide 30-degree or 45-degree chamfering to ensure smooth insertion into the backplane connector. We maintain a minimum of 0.15mm space between the finger and the bevel to prevent damage.
Do you support both Hard Gold and ENIG on the same board?
Yes, we can perform selective plating, such as ENIG for component soldering and hard gold for the edge connectors, providing the best of both worlds for conductivity and durability.
