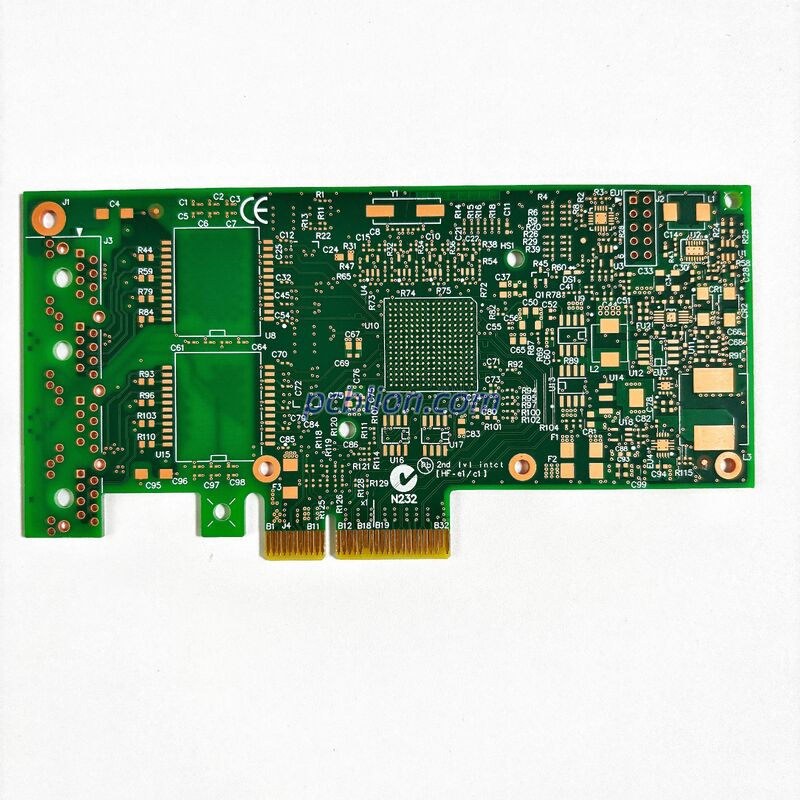

DFM Engineering For Manufacturing And Assembly , DFA Engineering For Assembly Services

Brand Name: Dux PCB
Model Number: DFM & DFA Engineering Review
MOQ: 1 pcs
Price: Negotiable / Based on layer and complexity
Delivery Time: 3–5 days for prototype, 7–10 days for mass production
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Detail Information
Place of Origin:
China
Certification:
UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH.
Name:
DFM Design For Manufacturing And Assembly
Packaging Details:
Vacuum + anti-static bag + foam + outer carton
Supply Ability:
30,000㎡/month
Highlight:

DFM Design For Manufacturing And Assembly

,

DFA Design For Assembly Services

,

DFA Engineering For Manufacturability DFM Services

Product Description
DFM & DFA Engineering Review

Optimizing Design Intent for Manufacturing Reality.

At DuxPCB, we understand that a "Design Rule Check" (DRC) passing in CAD does not guarantee a high-yield production run.

Our DFM (Design for Manufacturing) and DFA (Design for Assembly) services are not just about error checking; they are about Process Optimization. Our team of 100+ Engineers leverages decades of fab and assembly data to align your design with the physical realities of mass production, bridging the gap between theoretical design and shop-floor capability.


1. Advanced PCB Fabrication DFM

Focus: Signal Integrity, Impedance, and Material Science.

We go beyond standard clearance checks. We analyze the physics of the board construction using industry-standard CAM stations (Genesis 2000 / InCAM).

Stack-up & Impedance Modeling
  • Polar SI9000 Verification: We do not guess. We model your controlled impedance structures using Polar SI9000, adjusting trace width/spacing within your tolerance to match our pre-preg dielectric constants (Dk) and pressing thickness.

  • Layer Registration & Scaling: We calculate material movement (scaling factors) based on copper distribution to compensate for expansion/contraction during lamination, ensuring precise layer-to-layer registration.

HDI & Via Structure Analysis
  • Via Reliability: For HDI designs, we validate the aspect ratio of blind/buried vias to guarantee plating solution flow. We analyze Via-in-Pad (VIPPO) structures to ensure proper resin plugging and planarization, preventing solder voids during assembly.

  • Rigid-Flex Transition Zones: For rigid-flex boards, we examine the transition zone and coverlay openings to prevent stress concentrators that could lead to trace cracking during bending.


2. PCBA DFA & Process Engineering

Focus: SMT Yield, Thermal Profiling, and Stencil Design.

Assembly issues often stem from subtle interactions between the component, the paste, and the thermal profile. Our DFA review targets these non-obvious failure modes.

Stencil Aperture Optimization
  • Paste Release Efficiency: We don't just use 1:1 pad-to-aperture ratios. Our SMT engineers modify stencil apertures (Home-plate, Window-pane, or reduction designs) based on lead termination types to control solder volume and minimize solder balls/beading.

  • Step-Stencil Requirements: We identify components requiring varying paste heights (e.g., shielding cans vs. 01005 passives) and recommend Step-Up/Step-Down stencils.

Thermal & Mechanical Feasibility
  • Shadowing Effects: We analyze component placement to identify "shadowing" risks where large components (like connectors) might block heat from reaching smaller adjacent parts during reflow.

  • Reflow Profile Simulation: For heavy-copper or aluminum boards, we assess thermal mass distribution to ensure solder joints reach liquidus without overheating sensitive components.

  • Stress Mitigation: We review component orientation near V-Cut or Tab-Route edges to prevent ceramic capacitor cracking during de-paneling.


3. Commercial DFM (Supply Chain)

Focus: Lifecycle Management & Availability.

A technically perfect board is useless if the parts are unprocurable. Our sourcing engineers perform a "Commercial DFM" alongside the technical review.

  • Lifecycle Status: We scrub your BOM against global databases to flag NRND (Not Recommended for New Designs), EOL (End of Life), or Obsolete components.

  • Lead Time Analysis: We identify "High-Risk" components with volatile lead times and propose Form-Fit-Function (FFF) alternatives from our qualified vendor list to secure your production schedule.


The Engineering Query (EQ) Workflow

We operate on a "Stop and Verify" protocol. We never assume design intent.

  1. Comprehensive CAM Review: Files are processed through our automated logic scripts and reviewed by senior CAM engineers.

  2. EQ Generation: If a discrepancy arises (e.g., conflicting Drill Drawing vs. NC Drill file, or Impedance Mismatch), we issue a formal Engineering Query (EQ).

  3. Proposal-Based Solutions: We don't just state the problem; we provide a Technical Proposal (e.g., "Suggest adjusting dielectric layer 3-4 from 0.1mm to 0.12mm to meet 90Ω USB requirement").

  4. Written Approval: Production proceeds only after your engineering team reviews and approves the solution.


Review Capabilities Snapshot
Parameter Standard Capability Engineering Checkpoint
Impedance Control ±10% (Standard) Polar SI9000 Calculation & Coupon Test Design
BGA Pitch 0.3mm (Ultra-Fine) Mask Dam & Capture Pad Verification
Plating ENIG / OSP / Hard Gold Solderability & Shelf-Life Analysis
Material CTE Tg150 / Tg170 / Rogers Z-Axis Expansion & Delamination Risk Analysis
HDI Vias Laser / Mechanical Aspect Ratio & Plating Throwing Power Check

Validate Your Design Before Fabrication.
Upload your data for a professional Engineering Review.
